GYSMATIC AIR-FED 9/13 XL TC WELDING HELMET 065727

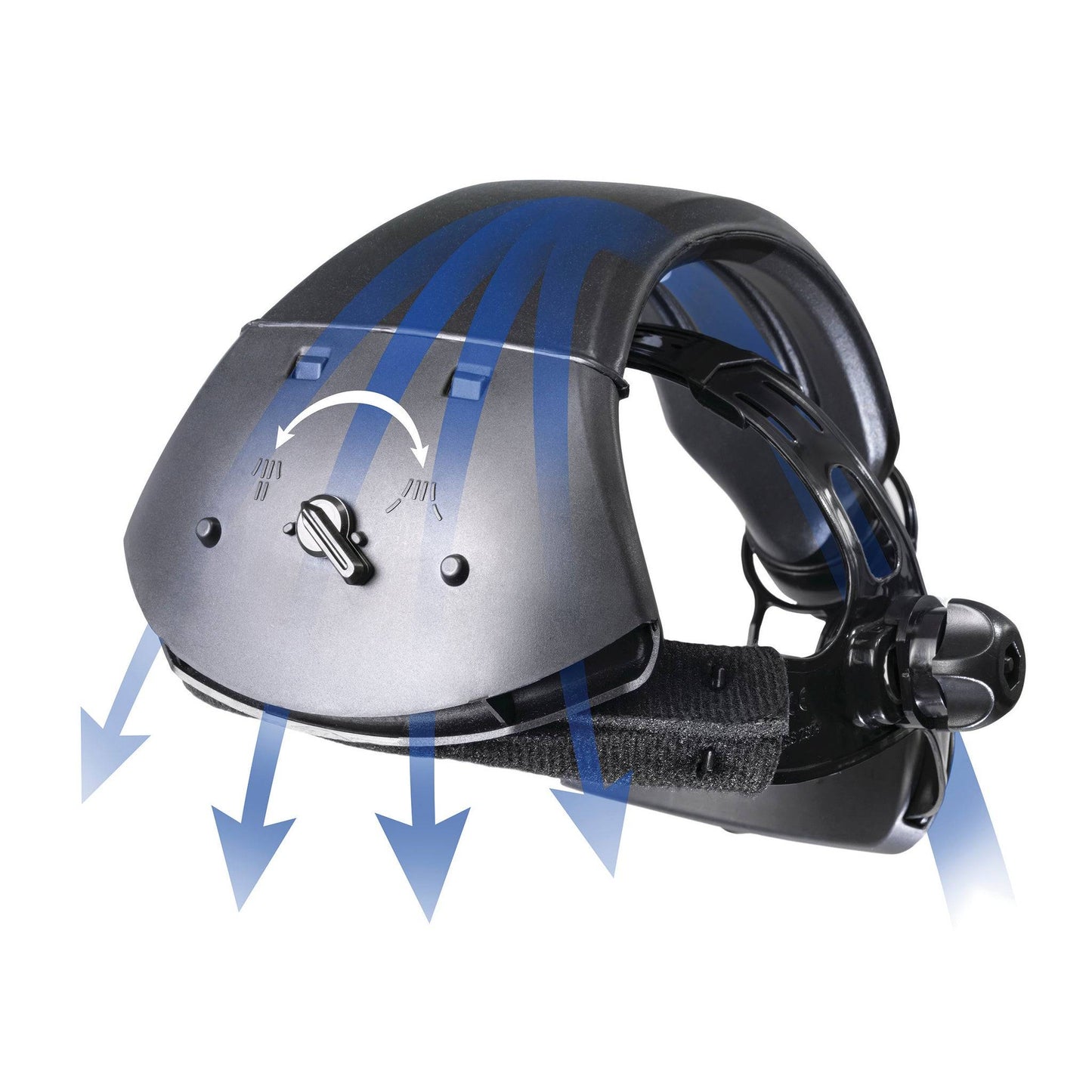

The GYSMATIC AIR-FED 9/13 XL TC WELDING HELMET is equipped with an air-purifying, respiratory-protection system to assist in air ventilation. This 2-in-1 machine protects the eyes from IR/UV light during welding operations and protects the user’s respiratory tract.

CHARACTERISTICS:

• Adjustable 9/13 tint
• Wide field of vision
• Highly sensitive thanks to four sensors
• UV/IR protection DIN 15
• External adjustments: tinting or grinding
• TRUE COLOR technology

GYSMATIC AIR-FED 9/13 XL TC WELDING HELMET TECHNICAL DATA:

HELMET:

Protection UV/IR DIN 15

Classification 1/1/1/2

Clear shade 4

Dark shade 9 > 13

Reaction speed 0.08 ms

Back too clear speed 0.1 - 0.9 sec

Field vision 100 x 60 mm

Power supply solar & battery powered

Weight 1.7 kg

Settings Sensitivity, delay, tinting and grinding

Light sensor 4

Applications MMA 5400 / TIG 2250 / MIG-MAG 5400

Standards / EN 175B / EN 166 /EN 379

GYSMATIC AIR-FED 9/13 XL TC WELDING HELMET RESPIRATORY PROTECTION:

Air flow

170 l/min

200 l/min

230 l/min

Battery life*

> 8 h

> 6 h

> 4 h

Airtight 98 % (TH2)

Filter effectiveness 99.996% at 0.3 μm

Noise 73 dB max

Charge time 3 - 4 h

Battery type Li-ion

Waist belt size 900 mm - 1,300 mm

Weight 1.7 kg

Standard EN 12941

*The battery life depends on the selected mode and filtercleanliness.

Supplied with:

- GYSMATIC 9.13G XL with welding

helmet

- The respiratory-protection system

(motor, filter and waist belt)

- Lithium-ion battery and charger

- Shoulder harness / air flowmeter
