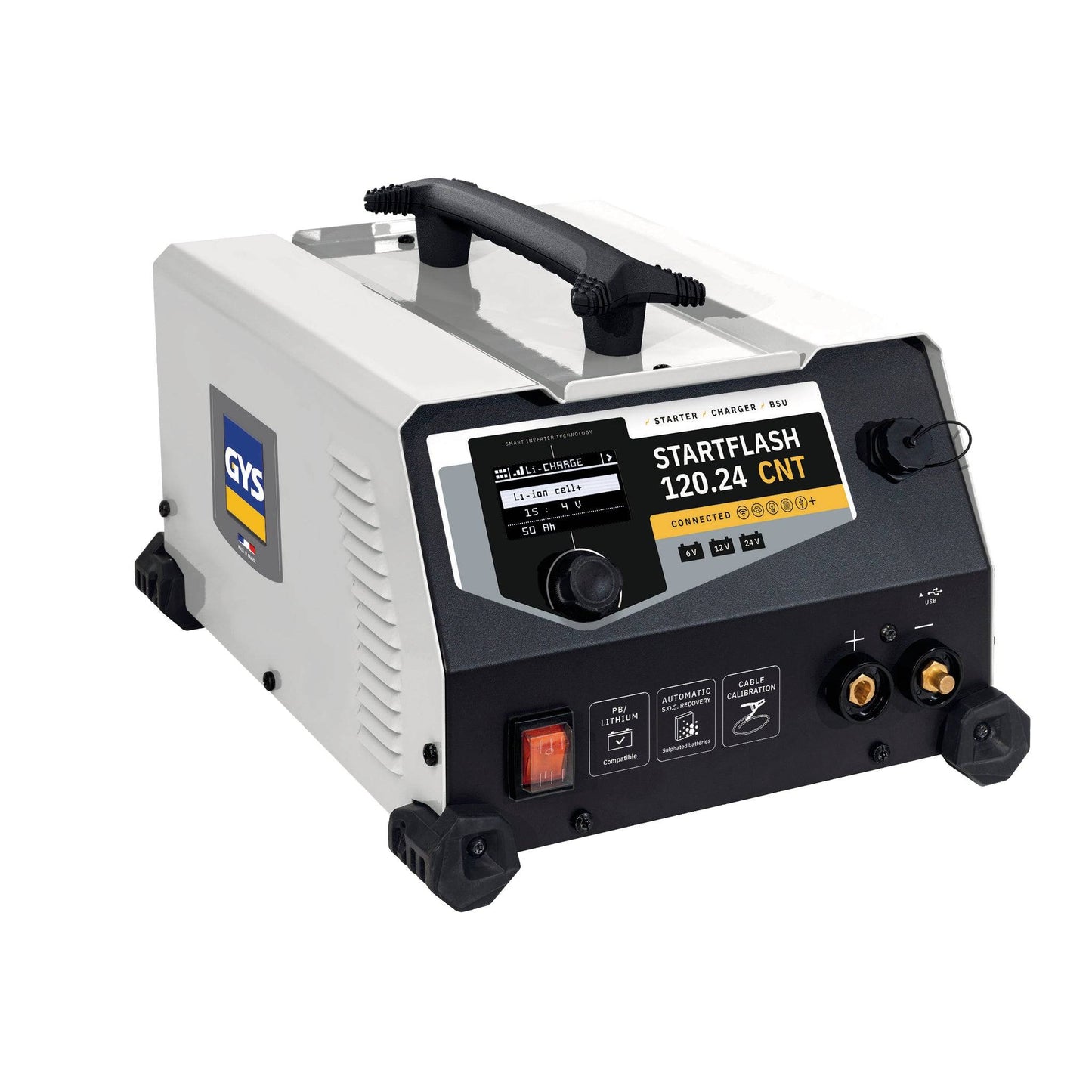

GYS STARTFLASH 120.24 CNT STARTER-CHARGER 073616

The STARTFLASH 120.24 CNT Car Battery Starter charger is the first charger-starter featuring INVERTER TECHNOLOGY. With a high power rating of 120 A, it is designed for all 6, 12 or 24 V lead-acid and lithium batteries. It keeps the battery at a perfectly stabilised voltage during the diagnostic phases and guarantees optimum charging quality formaintaining the most advanced batteries. Capable of starting any vehicle, from light- to heavy-goods vehicles, it can be fully customised thanks to its advanced connectivity system (USB + SMC).

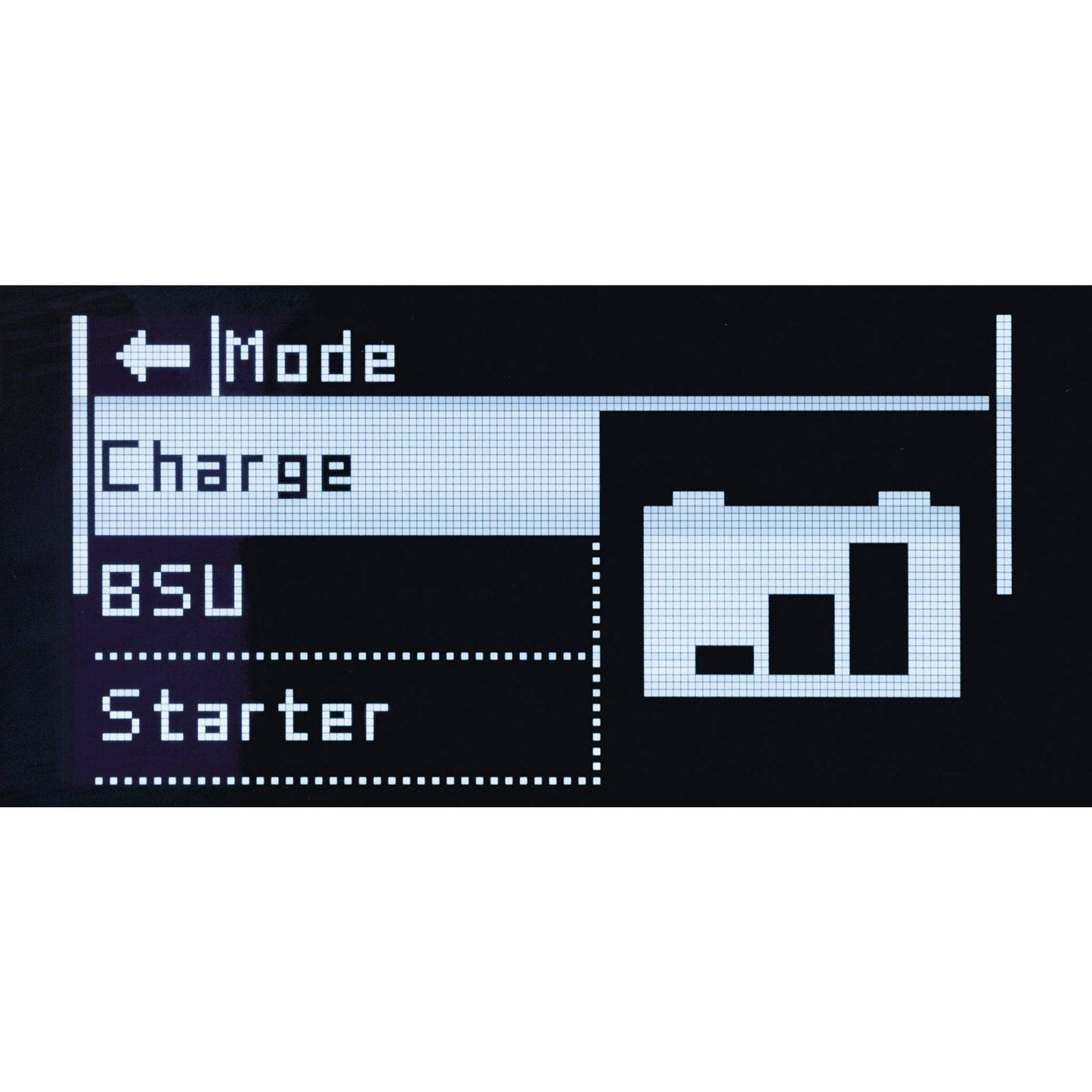

FOUR OPERATING MODES • Charging Mode: dedicated to recharging lead (sealed, liquid and AGM, etc.) or lithium
(LiFePO4) starter batteries.
• Power Supply Mode | BSU: meets the vehicle’s energy needs during diagnostic
phases.
• Startup Mode: starts vehicles with 12 and 24 V lead (sealed, liquid and AGM) or lithium
(LiFePO4) batteries.
• Testing Mode: used to check the battery’s condition as well as evaluate the vehicle’s
starting ability and alternator efficiency.

100% CONNECTED • Add, delete or modify charging modes and profiles using a USB key.
• Import predefined configuration files specific to the charging activities.
• Retrieve history and charge data from a USB key and use it in a spreadsheet.
• Connect additional modules (printer and barcode reader, etc) via its dedicated module
socket (SMC: Smart Module Connector).


AUTOMATIC CHARGING • Extends the service life and performance of lead-acid (gel, AGM, liquid and calcium, etc.) and lithium batteries (LFP).
• Specific eight-stage (lead-acid batteries) or nine-stage (lithium-iron phosphate batteries) unattended charging curve.
• Recovers deeply discharged batteries >2 V (automatic SOS Recovery).

HIGH-PERFORMANCE INVERTER STARTER • 300 A starter for light-goods vehicles, motorhomes, vans, tractors, lorries and buses, etc.
• The inverter-starter guarantees both speed and safety: a few seconds of pre-charging is sufficient to
achieve a safe start without voltage peaks.

Car Battery Starter charger ADVANCED TECHNOLOGIES & FEATURES • Its «Auto-Detect» feature automatically starts charging when a battery is connected to the charger.
• Its «Auto-Restart» feature saves the settings in the event of a power failure.
• Manage and calibrate cables.
• Up to 12 available charging profiles, including the «easy» profile for simplified lead-acid battery
charging.

ULTRA-SECURE Car Battery Starter charger • Preserves the vehicle’s on-board electronics: short circuit, reverse polarity and overload safeguard
systems. Anti-spark system.
• An interchangeable fuse protects against handling errors.
• Its temperature sensor prevents the internal electronics from overheating.

*Supplied with cables (5 m - 35 mm²)
