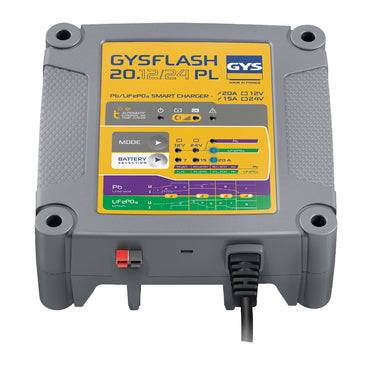

GYS FLASH 20.12/24PL Battery Charger 12V/24V

With a power of 20 A, the GYSFLASH 20.12/24 PL is a multi-voltage charger designed to recharge 12 V and 24 V lead-acid batteries  (Gel, AGM, Liquid, etc.)and Lithium-iron phosphate  (LFP / LiFePO4). It has 4 distinct intelligent charging programs that guarantee the performance of each battery technology.  DUAL TECHNOLOGY: LEAD-ACID & LITHIUM

• High efficiency, duty cycle of 20 A at 100% (40°C).
• 4 modes de charge :

Lead Acid: 12v 15ah to 300ah – 24v 15ah to 240ah

Lithium-Iron Phosphate: 12v 7ah to 300ah – 7ah to 240ah

• 3 charging currents: 7 A, 15 A and 20 A. Allows you to select the charging current that is best suited to the technology and capacity of the battery.
• Optimised maintenance charge, the charger can remain plugged in indefinitely during winter to maintain the health of the battery. The «Auto Restart» function means that the charger will memorise the settings and restart automatically in the event of a power cut.
• Battery charging from 2 V.

100% AUTOMATIC CHARGE  START / STOP (EFB/AGM)

• Extends the life and performance of Lead (gel, AGM, liquid, calcium, etc.) and Lithium (LFP) batteries.

• External temperature sensor, for an optimal battery charge whether it’s summer or winter. The charger adjusts its charging parameters depending on ambient temperature.

Specific 7 step charging curve  for each battery technology. Can be safely left connected without supervision.

Specific charging curve in 8 steps without supervision.
«UVP* Wake up» function:  reactivates a battery in protection after a deep discharge and automatically starts the charge.
*UVP : Under Voltage Protection
EBS technology  (Equalizing Battery System) to ensure the perfect balancing of battery cells.
SAFETY

• Protection of the vehicle’s on-board electronics: protection against short circuits, polarity reversal and overcharging. Spark prevention system. • Automatic stand-by mode if the battery is disconnected. • Integrated temperature sensor to prevent internal electronics’ overheating.
• Simplified interface to prevent user errors.

ERGONOMICS

• Compact design, light and portable. • Connection of the clamps with quick connector (Anderson). • Can be wall mounted, optional magnetic system available (ref. 026063).
