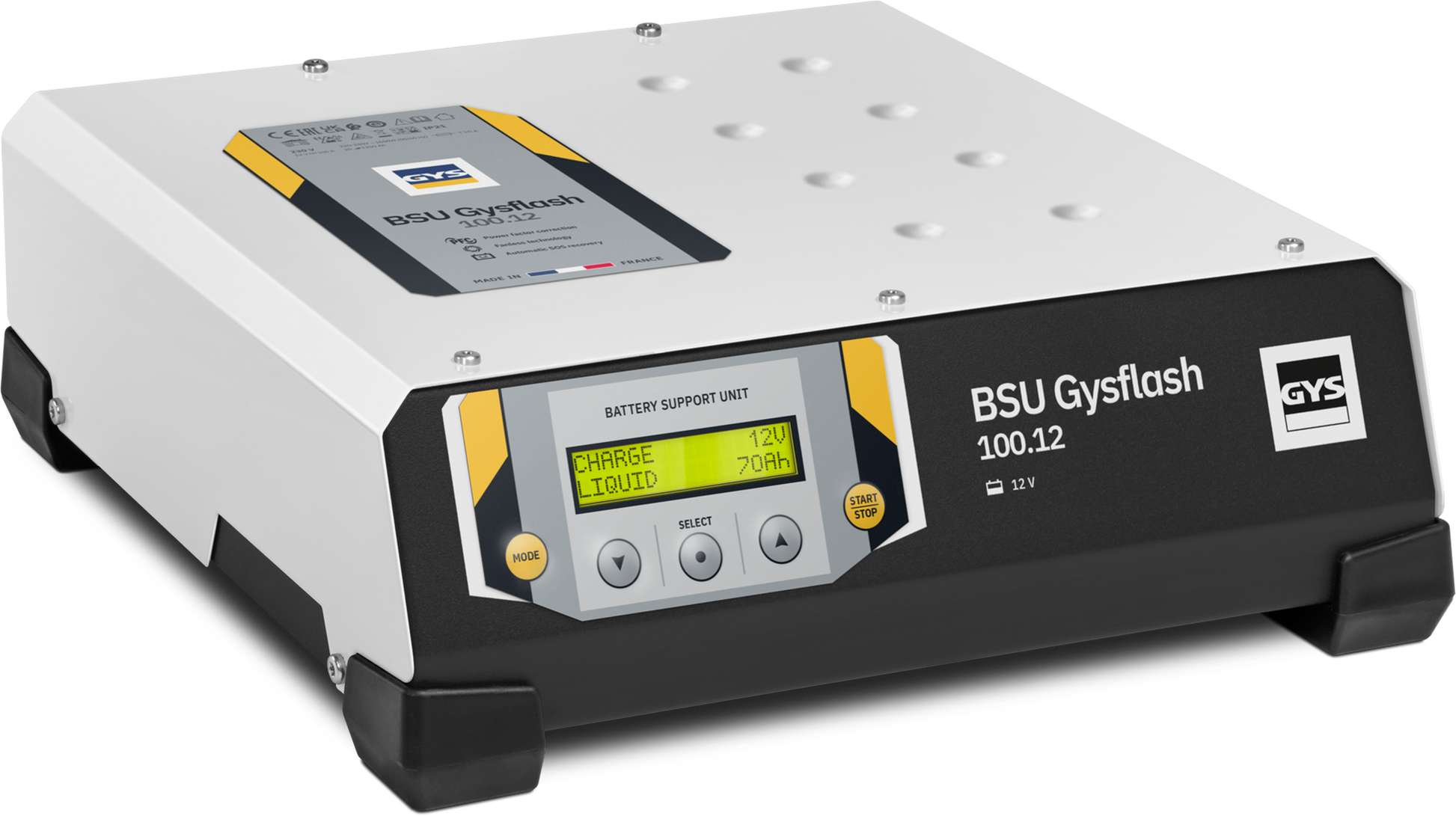

• GYSFLASH Battery Support Unit & Diagnostic Charger 100.12 029453
  • GYSFLASH Battery Support Unit & Diagnostic Charger 100.12 029453 information leaflet
  • GYSFLASH Battery Support Unit & Diagnostic Charger 100.12 029453 in use

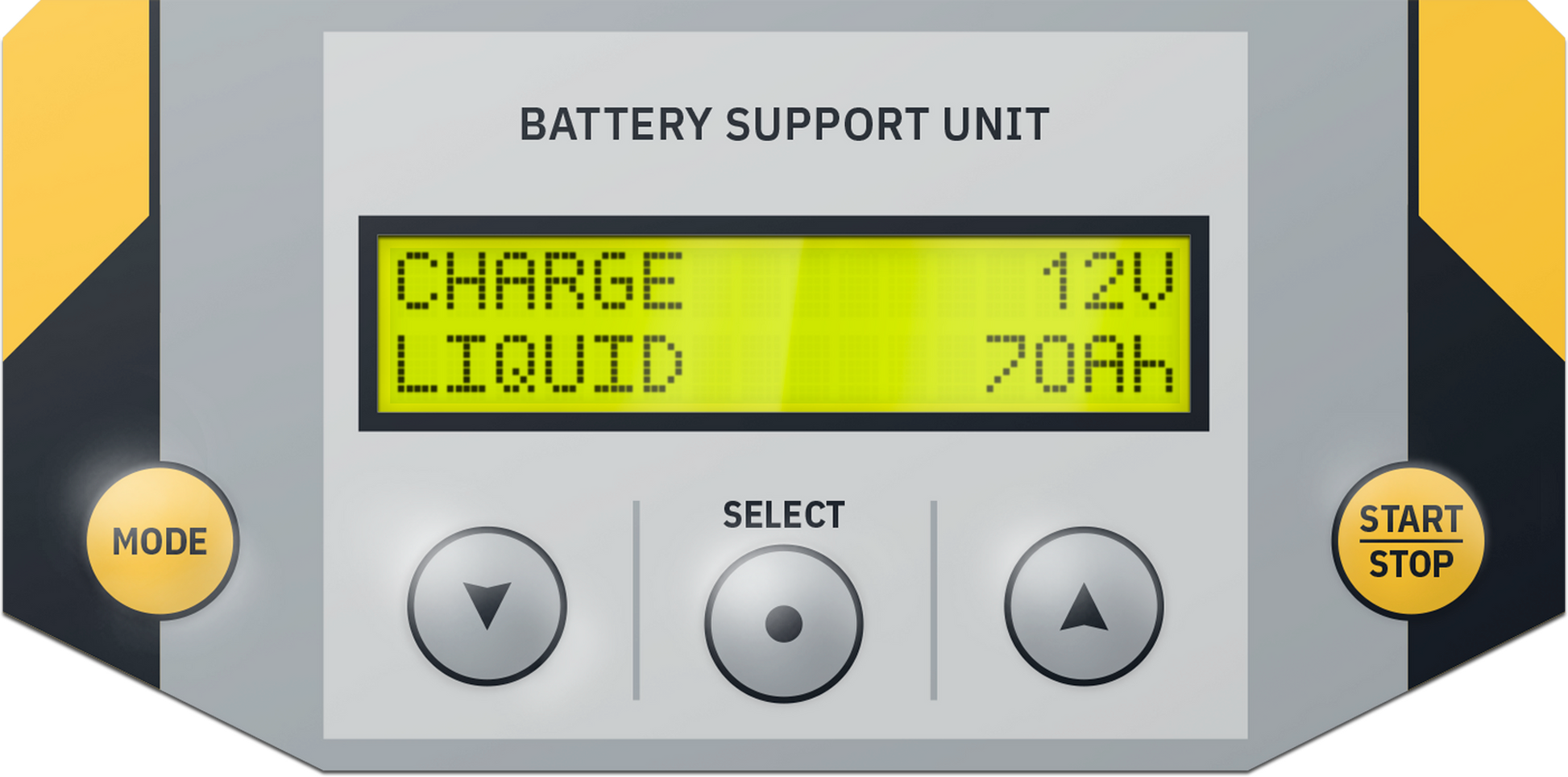

  • GYSFLASH Battery Support Unit & Diagnostic Charger 100.12 029453 control panel
  • GYSFLASH Battery Support Unit & Diagnostic Charger 100.12 029453 cables
1 5

Auto Advisor

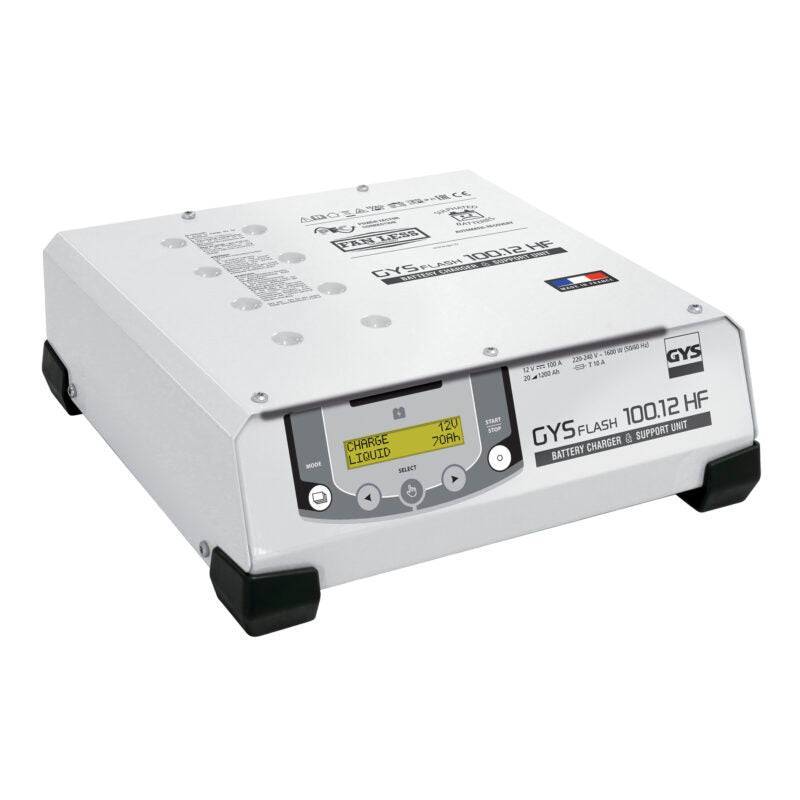

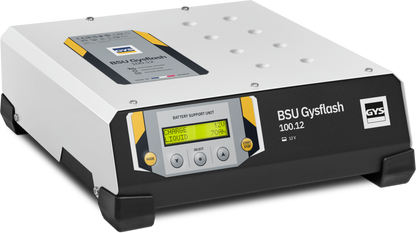

GYSFLASH Battery Support Unit 100.12 029453

GYSFLASH Battery Support Unit 100.12 029453

029453

£649.66 GBP ex VAT
ex VAT @ 20% £649.66 GBP ex VAT
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

Order before 1PM for fast delivery!

If you place your order before 1PM, your order would normally be dispatched on the same working day where possible or, next working day after 1PM. Please allow 1-3 working days to receive your goods.

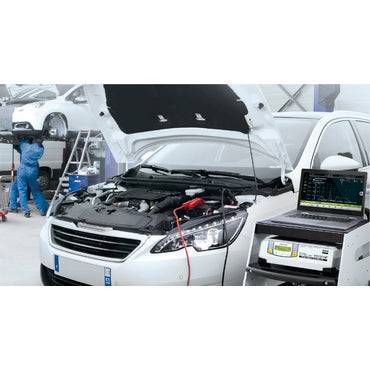

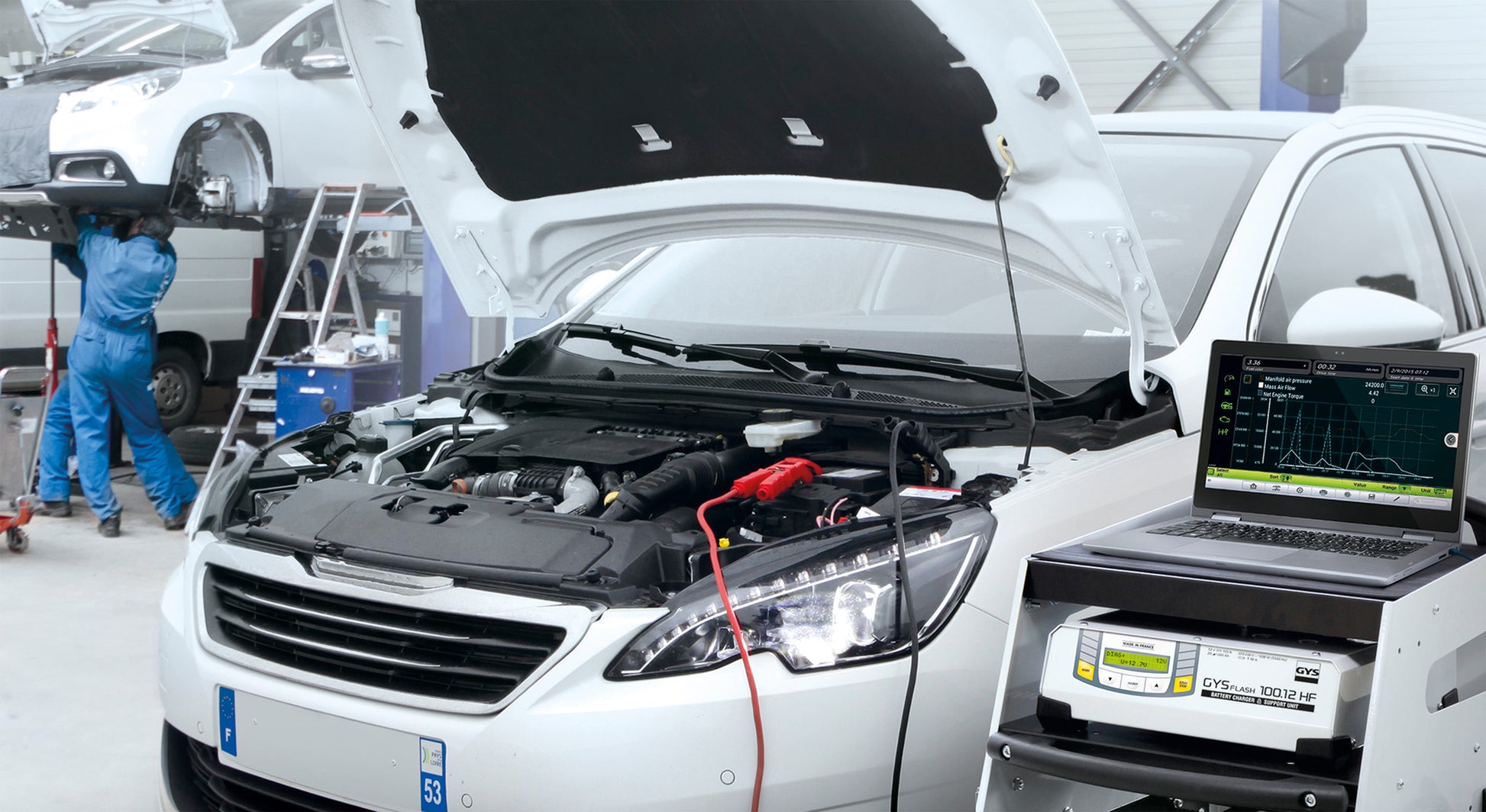

GYSFLASH Battery Support Unit (BSU) & Diagnostic Charger 100.12 029453 is necessary for providing the required energy when the key is on and the engine is off (KOEO), especially during diagnostic phases, ADAS work or vehicle demonstrations in a showroom. DIAGNOSTIC - Compensates for energy requirements up to 100Amp. Adjustable voltage from 12v to 14.8v in steps of 0.1v according to the vehicle manufacturers specifications. Suitable for 12v batteries from 10-1200ah. CHARGES – 9 step charging curve for all lead acid batteries including AGM/EFB Stop Start, SOS recovery of sulphated battery. SHOWROOM – maintains the charge of a vehicle’s battery while in a showroom, key on, engine off. Made in France.

GYSFLASH Battery Support Unit & Diagnostic Charger 100.12 029453 is a 100 A, high-power, stabilised power supply featuring inverter technology with five separate functions: • Battery support: sustains 12 V (liquid or gel), automotive batteries during diagnostic work • Advanced battery charger: ensures ideal charging cycles to maintain the batteries of even the most modern vehicles • Showroom mode: maintains batteries in showroom vehicles • «BATTERY CHANGE» mode will maintain an electrical power supply to preserve the vehicle’s memory settings • High-power, stabilised power supply: both the voltage and current can be adjusted

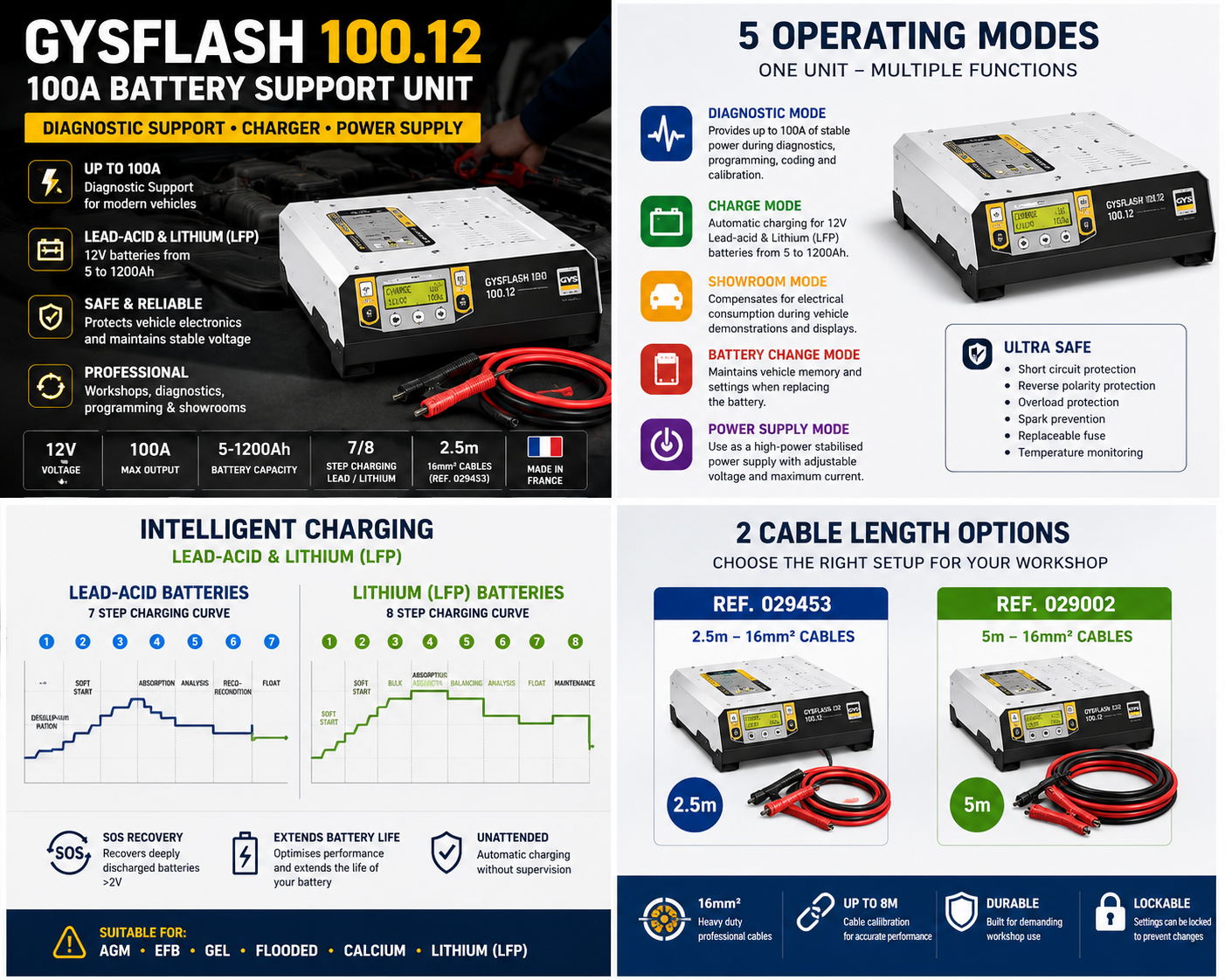

GYSFLASH Battery Support Unit & Diagnostic Charger 100.12 029453 has 5 operating modes • Charging • Diagnostic • Showroom • Change battery • Power Supply Avanced features • Automatic restart • Cable testing and calibrating • Showroom mode lock feature • “Easy charge” mode • Activate and adjust an “expert” charging curve • Automatic SOS recovery for sulphated batteries TECHNOLOGY High duty cycle 93% 15% more energy FEATURES
No external ventilation = No dust ingress

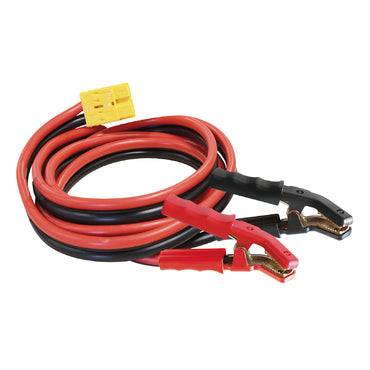

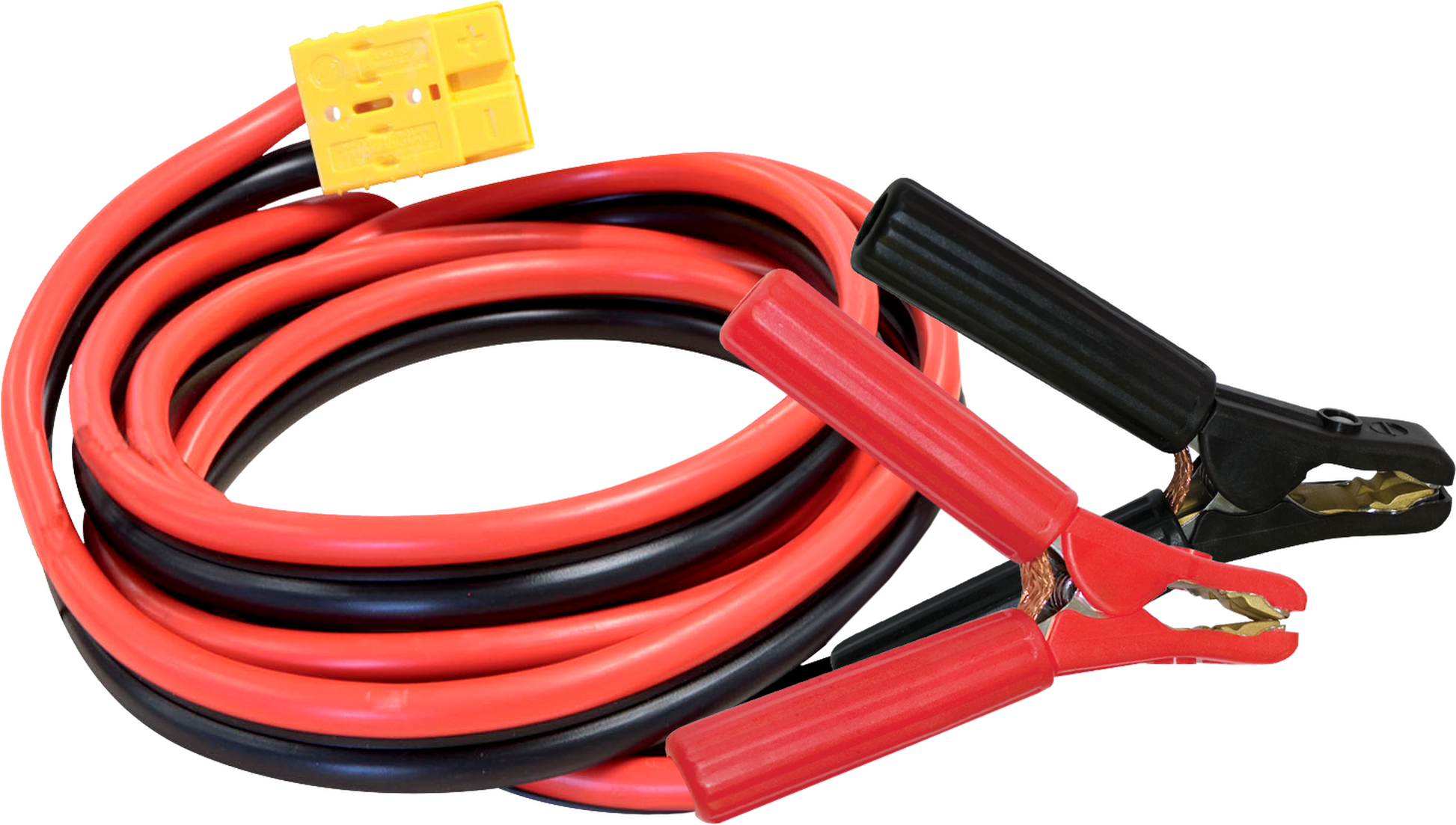

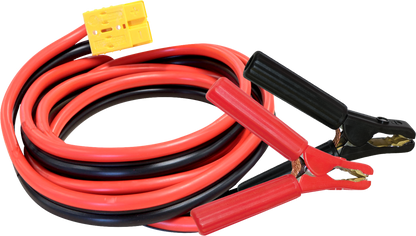

Intuitive interface 19 available languages Compact The charger’s small size (<11cm) enables it to be placed underneath a vehicle. Cables • Fitted with 2.5 m / 16 mm2 (x2) cables • It can be fitted with 8 m / 16 mm2 cables and higher. Calibration is automatic. Inverter - This technology enables: • A better duty cycle for a lightweight devices (6.1 kg). • Shock- and vibration-absorbing feet.
Showroom Mode and reduced dimensions: • Low height (< 11 cm): to enable the device to fit underneath a vehicle. • Showroom mode lock: to avoid misuse when vehicles are displayed in garages and showrooms. • Automatic restart: automatically resumes the most recently used operating mode in the event of a power failure.
