GYS GYSMI 100A Ready to Weld Pack – MMA Arc Welding Starter Kit U85107

GYS GYSMI 100A Ready to Weld Pack – U85107

Get started with MMA stick welding with this GYS Ready to Weld Pack. Built around the compact GYSMI 100A inverter welder, the pack includes welding leads, a handheld face shield, leather gauntlets, electrodes and magnetic welding positioners.

The machine operates from a 230V single-phase supply and offers adjustable welding current from 10–100A. Weighing just 2kg, it is easy to carry and store, making it a practical choice for workshop repairs, maintenance and DIY metalworking.

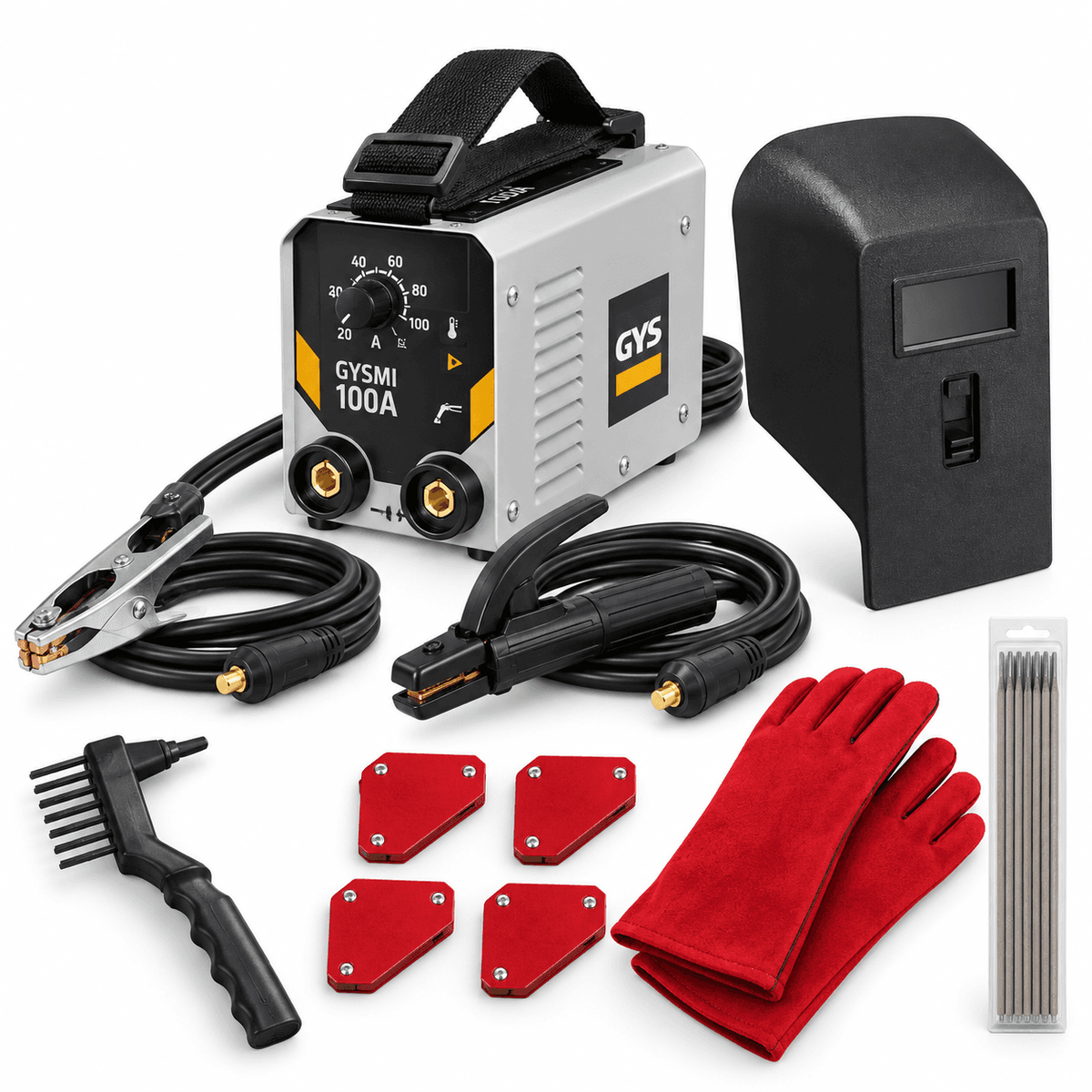

What’s included

• GYS GYSMI 100A inverter welding machine.

• Earth clamp and lead.

• Electrode holder and lead.

• Combination chipping hammer and wire brush.

• Handheld welding face shield.

• 4 magnetic welding positioners.

• 13 rutile electrodes for steel.

• Pair of leather welding gauntlets.

Key features

• 10–100A adjustable output: simple rotary control to set welding current.

• IGBT inverter technology: provides consistent welding current and a stable arc.

• Hot Start: assists electrode ignition.

• Arc Force: temporarily increases current during difficult welding conditions.

• Anti-Sticking: reduces electrode sticking to the workpiece.

• Portable design: compact housing with a carrying strap.

• Overcurrent protection.

Welding applications

Suitable for welding mild steel, stainless steel and cast iron up to 5mm thick, using the appropriate electrodes and welding settings.

The machine supports rutile, stainless steel, cast iron and basic coated electrodes up to 2.5mm diameter. The supplied rutile electrodes are for steel; other materials require suitable electrodes purchased separately.

MMA welding uses coated electrodes and does not require a separate shielding-gas supply.

Technical specifications

• Power supply: 230V single-phase, 50/60Hz.

• Input current rating: 16A.

• Welding current: 10–100A.

• Duty cycle at 40°C: 50A at 60%; 35A at 100%.

• Open-circuit voltage: 63V.

• Welding lead length: 1.6m each.

• Machine dimensions: 21 × 13 × 10cm.

• Machine weight: 2kg.

• Protection rating: IP21.

• Generator requirement: 4.5kW / 5.0kVA, within the manufacturer’s specified voltage tolerance.

Brand: GYS
Machine model: GYSMI 100A
Ready to Weld Pack reference: U85107
Welding machine reference: 085107
