GYS Smart Hub Module 025981 – Communication Hub for GYSFLASH CNT Chargers

GYS Smart Hub Module 025981 – Communication Hub for GYSFLASH CNT Chargers

025981

£304.00 GBP ex VAT
ex VAT @ 20% £304.00 GBP ex VAT
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

Order before 1PM for fast delivery!

If you place your order before 1PM, your order would normally be dispatched on the same working day where possible or, next working day after 1PM. Please allow 1-3 working days to receive your goods.

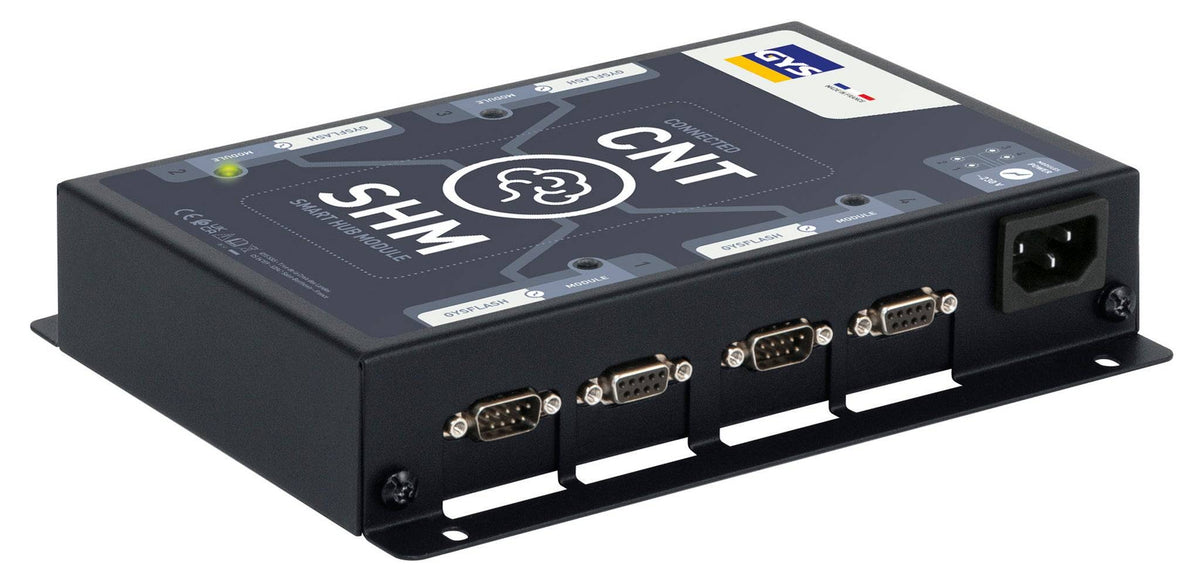

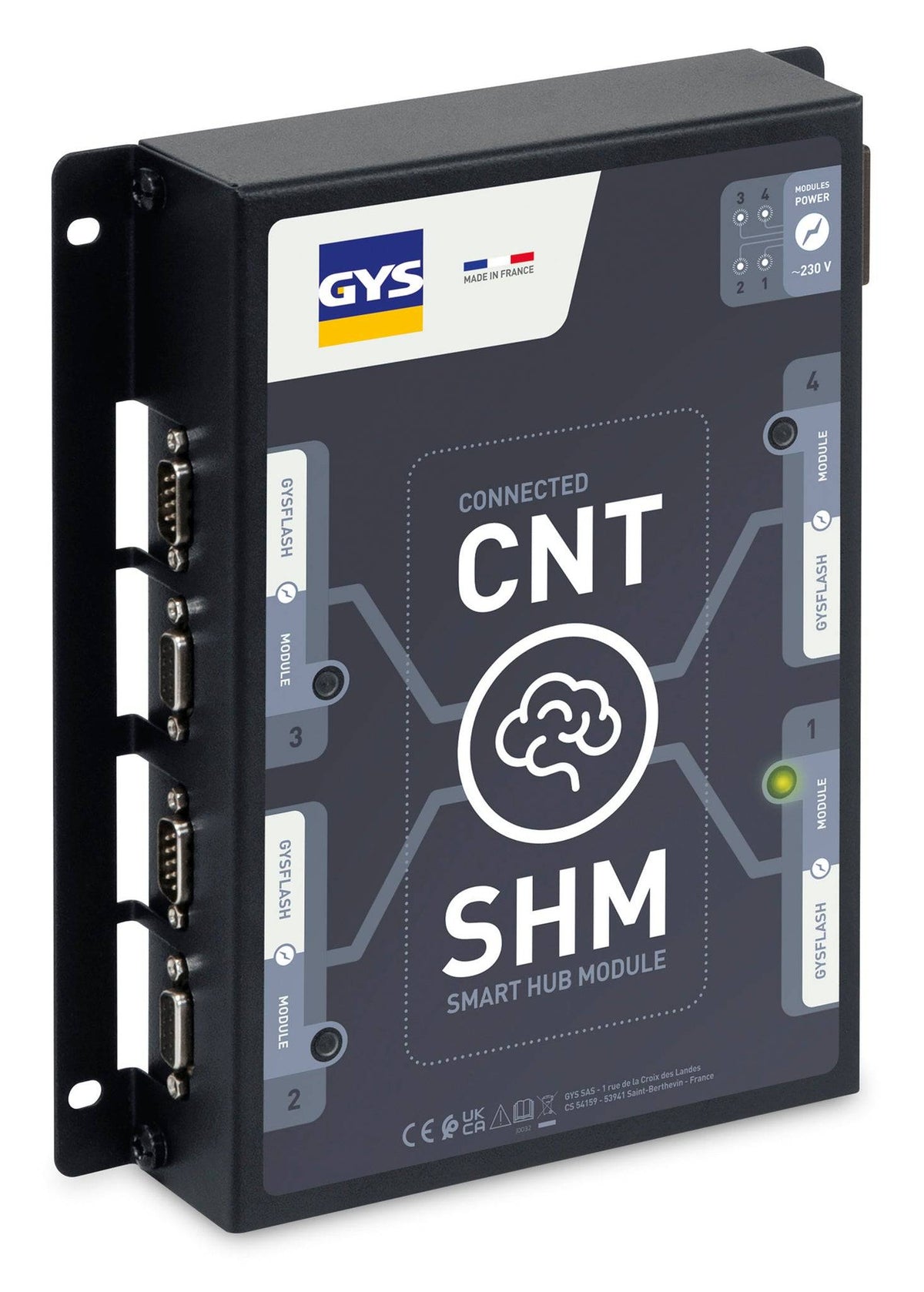

GYS Smart Hub Module – 025981

Expand the connectivity of your GYSFLASH CNT charger with the GYS Smart Hub Module (SHM). This communication hub allows up to four compatible accessory modules to connect to one charger.

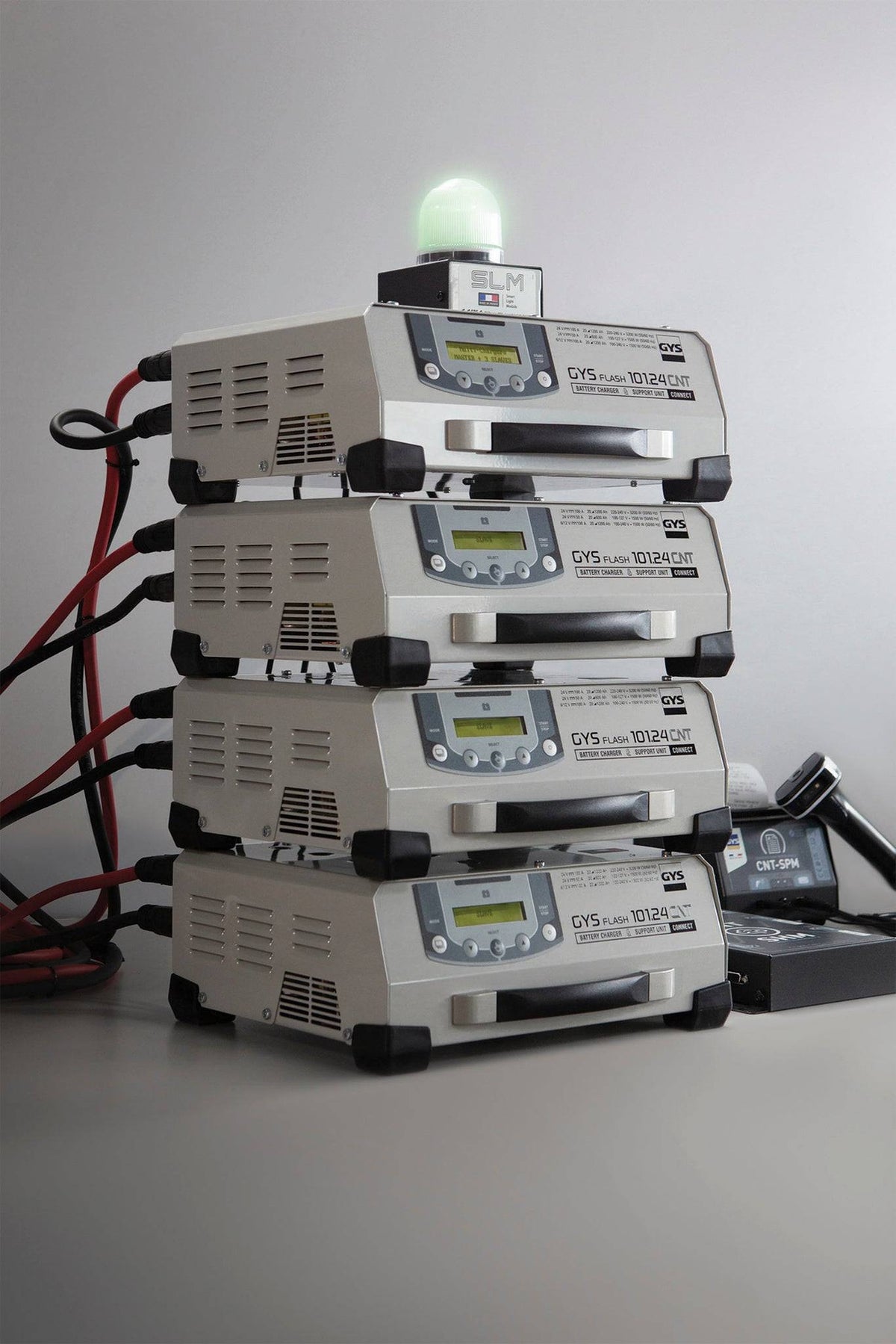

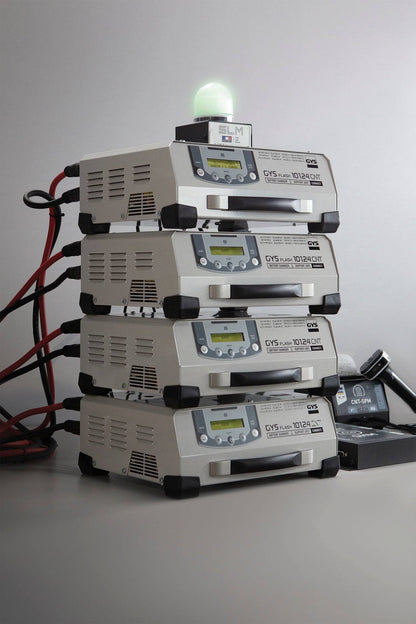

It also manages communication between up to four GYSFLASH CNT chargers operating in parallel, when used alongside the separately required Power Hub Module.

Key features

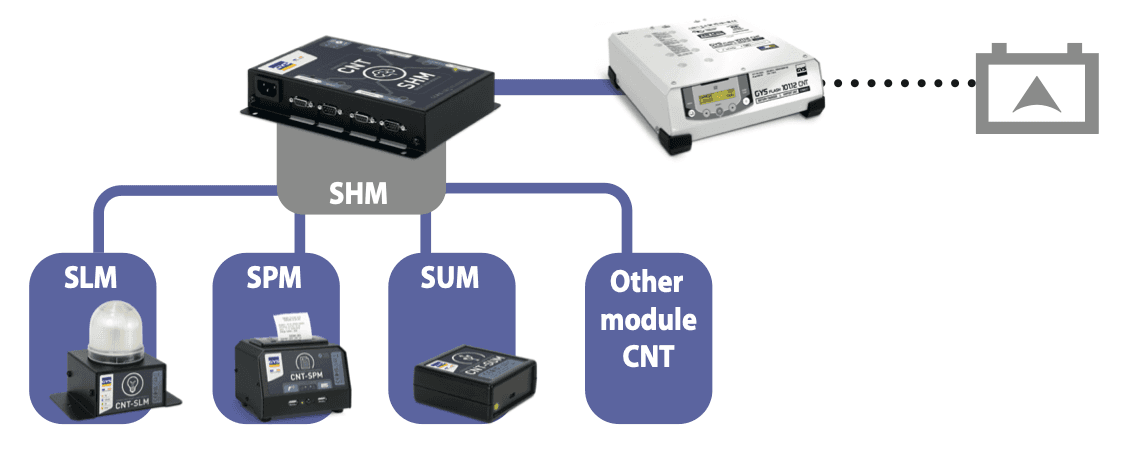

  • Connect up to four compatible accessory modules to one GYSFLASH CNT charger.

  • Support accessories such as the Smart Light, Smart Printer and Smart USB modules.

  • Manage communication between up to four GYSFLASH CNT chargers in a parallel installation.

  • Coordinate parallel chargers using a master/slave arrangement.

  • Compact design measuring 220 × 180 × 45mm.

Parallel charger operation

The Smart Hub Module manages communication; the GYS Power Hub Module (PHM), reference 056589, manages the power connections. Both modules are required for the parallel-charger function.

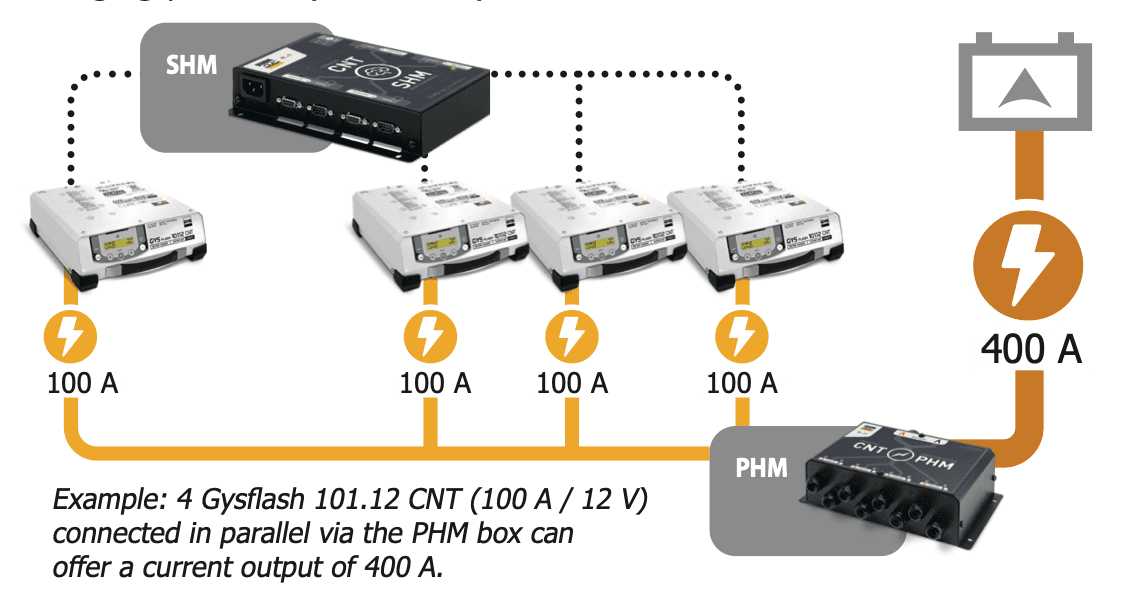

For example, the manufacturer illustrates four GYSFLASH 101.12 CNT 100A/12V chargers connected through the SHM and PHM to provide a combined 400A output.

The Smart Hub Module is not a battery charger and does not increase charging output on its own.

Supplied with

  • GYS Smart Hub Module, reference 025981.

  • Power cord.

  • 1m SMC connection cable.

Compatible accessory examples

  • Smart Light Module (SLM): 027978.

  • Smart Printer Module (SPM): 026919.

  • Smart USB Module (SUM): 025974.

Chargers, accessory modules and the Power Hub Module are not listed as included.

Technical specifications

  • Power supply: 230V, 50/60Hz.

  • Charger connections: 4 male SMC connectors.

  • Accessory connections: 4 female SMC sockets.

  • Dimensions: 220 × 180 × 45mm.

  • Weight: 1.07kg.

  • Protection rating: IP40.

  • Made in France.

Compatibility

Designed for the GYSFLASH CNT system. Please confirm compatibility with your exact charger model and intended accessory setup before purchasing.

Brand: GYS
Product: Smart Hub Module (SHM)
Manufacturer part number: 025981
