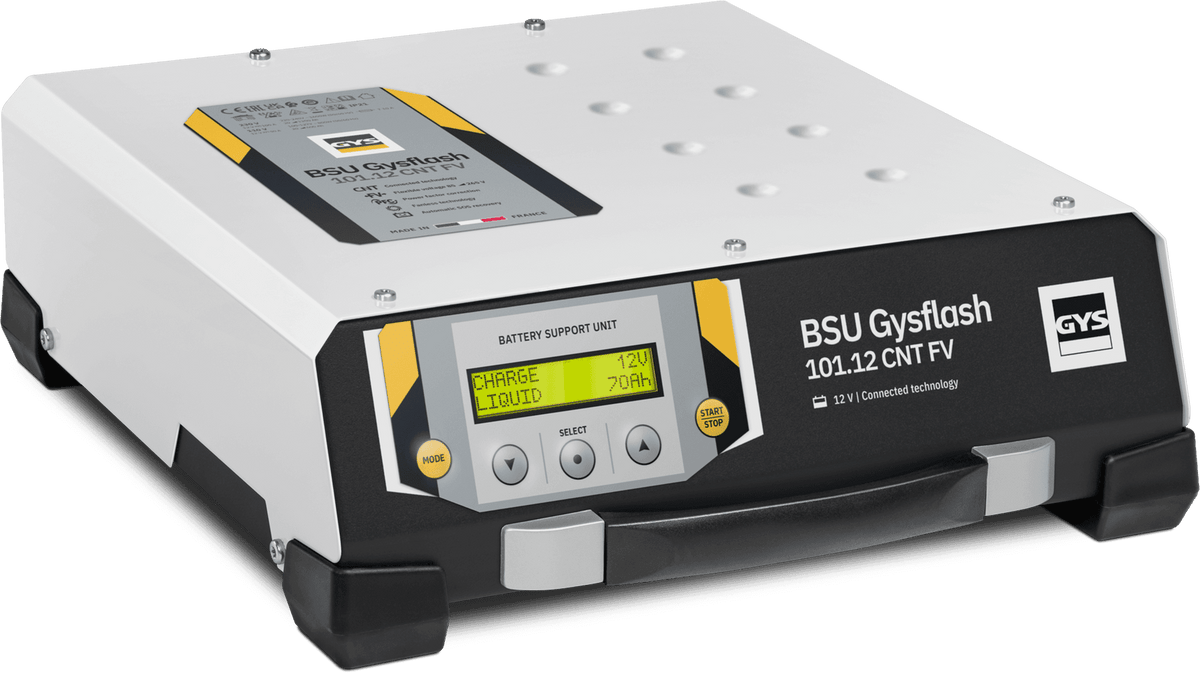

GYSFLASH 101.12 CNT FV 100A Battery Support Unit & Charger – 2.5m Cables – 025790

GYSFLASH 101.12 CNT FV Battery Support Unit & Charger – 025790

The GYSFLASH 101.12 CNT FV is a professional 12V battery charger and support unit for vehicle diagnostics, workshop charging and showroom use. Delivering up to 100A on a 230V supply, it maintains a stabilised battery voltage while diagnostic work is carried out.

This 025790 version includes 2.5m charging cables, making it a compact, practical choice for workshop bays.

Four operating modes

• Battery charging: dedicated charging programmes for compatible 12V lead-acid and lithium iron phosphate batteries.

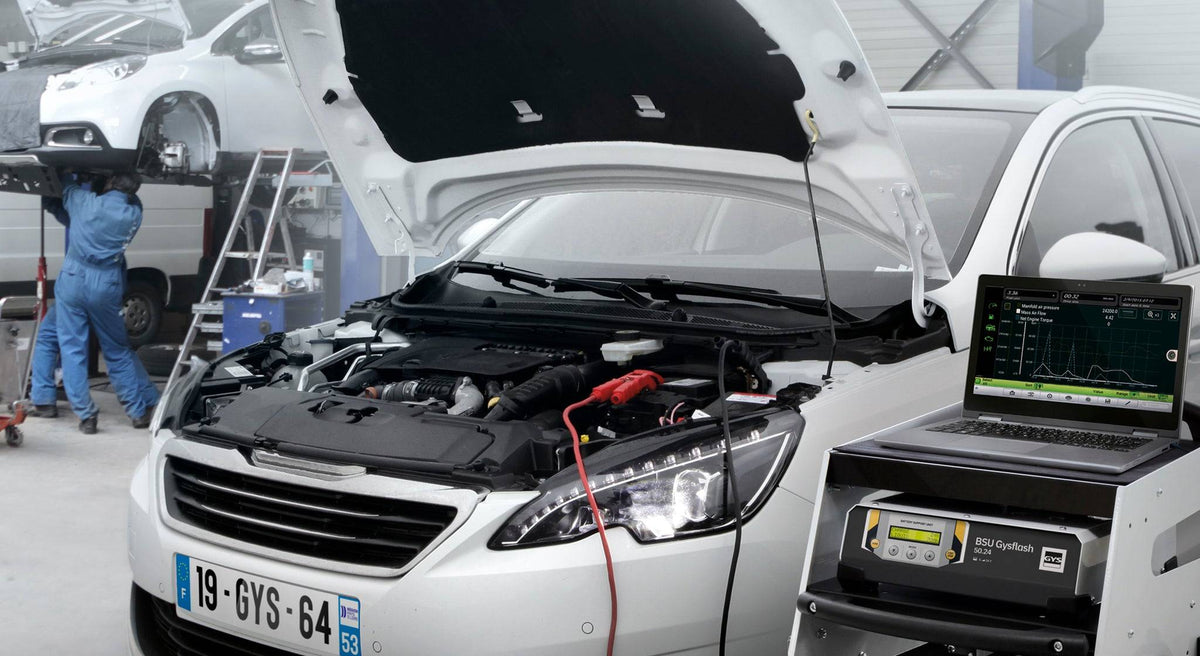

• Diagnostic power supply: supports the vehicle’s battery during diagnostic procedures, with up to 100A maximum output.

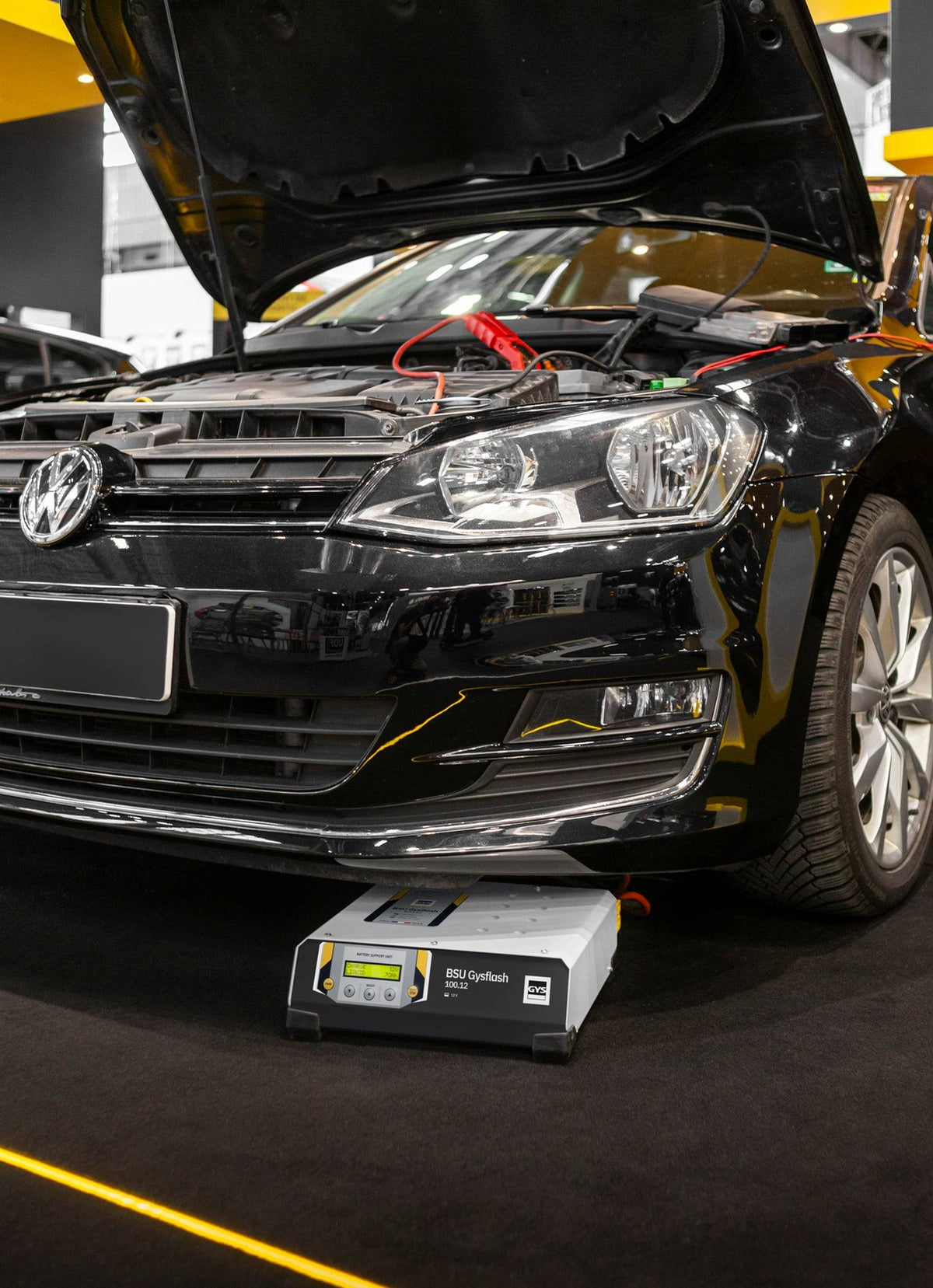

• Showroom power supply: compensates for electrical consumption when demonstrating a vehicle’s lights, displays and other accessories.

• Tester: checks battery condition, starting-system performance and alternator operation.

Connected features

• USB connectivity for adding, removing and modifying charging modes and profiles.

• Import predefined configurations for different charging applications.

• Export charging history and data to a USB drive for spreadsheet analysis.

• Smart Module Connector (SMC) for compatible optional accessories, including a printer module.

Automatic battery charging

Suitable for 12V lead-acid batteries, including AGM, gel, flooded and calcium types, plus compatible 12V LiFePO4/LFP batteries.

An eight-stage lead-acid charging programme and nine-stage lithium programme manage the charging process. Automatic SOS Recovery supports recovery attempts on deeply discharged batteries above 2V, depending on battery condition.

Designed for workshop use

• Auto-Detect: automatically starts charging when a battery is connected.

• Auto-Restart: retains settings following a power interruption.

• Cable inspection and calibration: supports compatible replacement cables up to 8m in 16mm².

• Control lock: helps prevent accidental changes to settings.

• Flexible Voltage technology: operates from an 85–265V mains supply.

• Fanless design: quiet operation without drawing dust through an external cooling fan.

• Durable housing with shock- and vibration-absorbing pads.

Protection features

Protection against short circuits, reversed polarity and overcharging, together with spark prevention, a replaceable protective fuse and internal temperature monitoring.

Technical specifications

• Battery voltage: 12V.

• Maximum output on 230V: 100A.

• Continuous output on 230V: 75A at 25°C; 66A at 40°C.

• Maximum output on 110V: 50A.

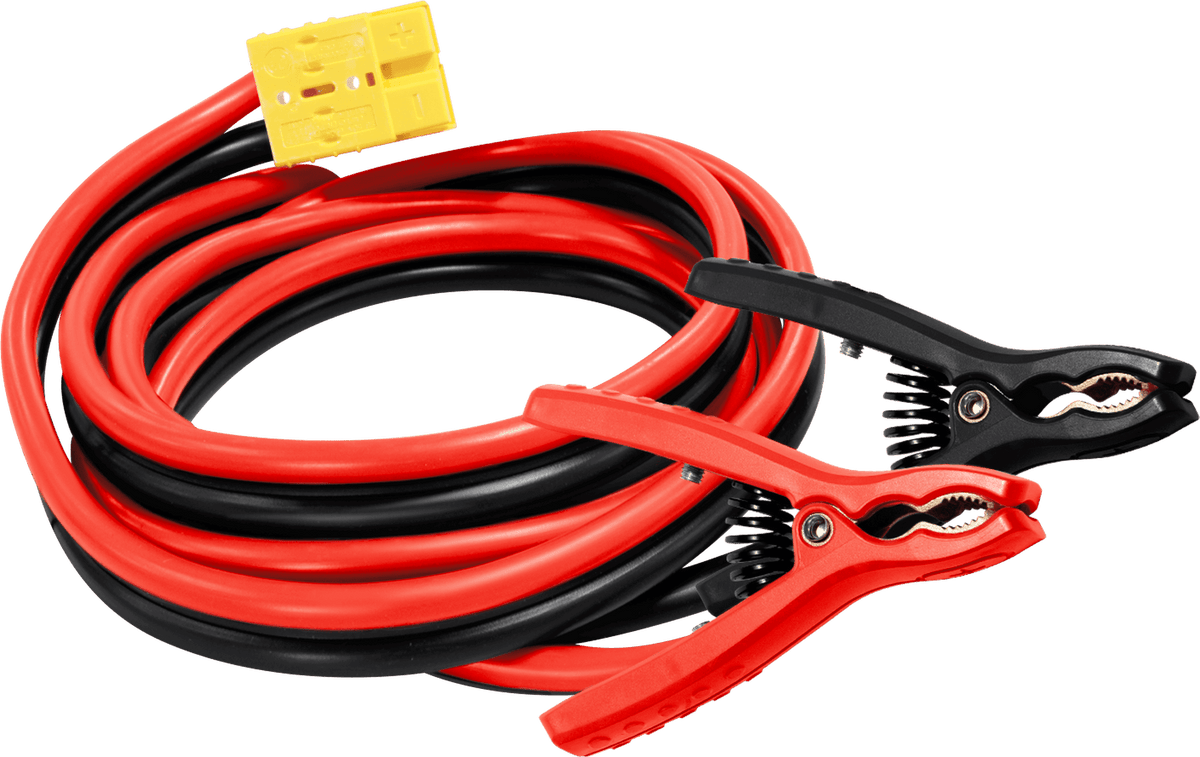

• Charging cables: 2.5m, 16mm².

• Dimensions: 32 × 10.5 × 29.2cm.

• Unit weight: 5.1kg.

• Protection rating: IP21.

• Made in France.

Supplied with

• GYSFLASH 101.12 CNT FV battery charger and support unit.

• 2.5m charging cables.

Optional modules, trolley, wall shelf and carry case are sold separately.

Compatibility

For compatible 12V lead-acid and LiFePO4/LFP batteries. Check the battery chemistry and the vehicle manufacturer’s required support voltage and current before use. Not suitable for every lithium battery chemistry.

Brand: GYS
Model: GYSFLASH 101.12 CNT FV
Manufacturer part number: 025790
Cable length: 2.5m
